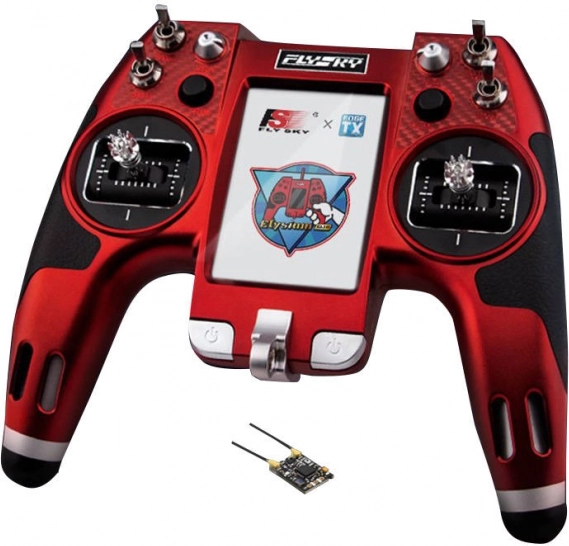

FlySky EL18 Transmitter and TMR Receiver Set
FlySky EL18 Transmitter and TMR Receiver Set
AFHDS 3 Protocol
The upgraded FlySky AFHDS 3 protocol ensures a reliable signal with a range of up to 3000 meters. It is compatible with one-way and two-way data transmission, allowing transparent data flows.
High Brightness Touch Display
The 3.5-inch IPS touch display provides high brightness and sensitivity, making it easy to configure and monitor functions in real-time.

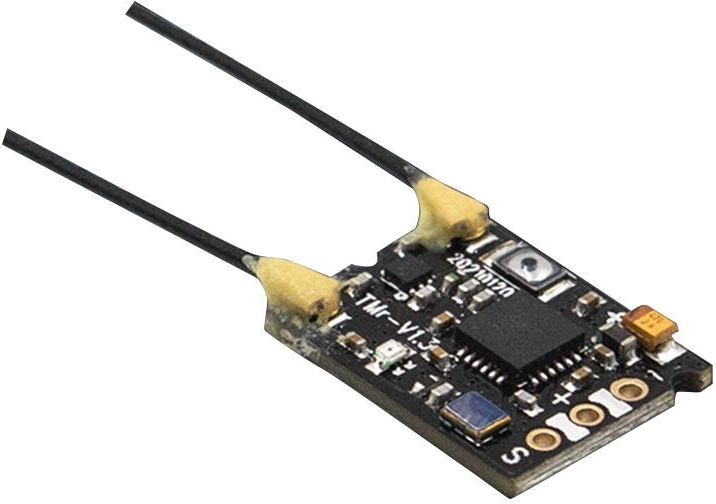

Compact TMR Receiver
The TMR receiver is extremely compact, weighing only 0.9 g, yet offers full support for AFHDS 3 protocols. Ideal for applications with limited space.
The FlySky EL18 and TMR set is designed to maximize performance and customizability. With 18 internal and 32 external channels, it allows for detailed control. The enhanced AFHDS 3 protocol guarantees high stability and low latency, making it ideal for racing drones and high-demand aircraft.
The intuitive 3.5-inch IPS touch display ensures easy control and overview of all functions. The controller is equipped with a USB-C interface for easy connection to other devices and accessories.
With FlySky EL18, you have the option to customize various functions and settings, allowing you to fully leverage the potential of this advanced transmitter. The ergonomic design and lightweight material contribute to comfortable use even during long sessions.
Specifications
- Manufacturer
- FlySky
- Transmitter Model
- EL18
- Number of Channels
- 18 channels for internal RF, 32 channels for external RF
- Wireless Frequency
- 2.4 GHz ISM
- Protocol
- AFHDS 3
- Antenna
- Two (built-in + external swivel)
- Display
- 3.5" IPS color touch display with 320 x 480 resolution
- Weight
- 726 g
- Certification
- CE, FCC ID: 2A2UNEL1800, UKCA
- Receiver Model
- TMR
- Input Power
- 3.5-9V
- Output Signal
- PWM / PPM / i.BUS / S.BUS
- Receiver Dimensions
- 16 x 12 x 2 mm
- Receiver Weight
- 0.9 g
