The Shelly Pro Dimmer is a sophisticated single-channel dimmer designed for DIN rail installation, perfect for smart lighting control in your home or office. Operate independently in a local Wi-Fi network or integrate with cloud-based home automation systems. Access, control, and monitor the dimmer remotely via the integrated web interface from anywhere with an internet connection. No additional hub is required for seamless local or remote operation using Shelly Smart Control or third-party systems.

Features and Control

• Automatic dimming calibration ensures smooth brightness adjustment across all levels.
• Choose control modes via switches or buttons for comprehensive device management regardless of wall installation setup.
• Night mode is available, allowing a specific light intensity level to be set after dark.
• Adjust dimming duration from 0% to 100% along with brightness change speed when buttons are held down.

Automation and Scheduling

• Create weekly schedules to automate brightness settings and transitions.
• Set timers and automation scenarios to customize your lighting according to your daily routine.
• Automatically turn lights on when you wake up and off when you go to sleep.

Applications and Integration

Easily customize room lighting to suit your needs with the Shelly Pro Dimmer. Create the perfect ambiance for any occasion. Compatible with ecosystems like Amazon Alexa, Google Home, and Samsung SmartThings, allowing control through your preferred app. Enjoy diverse connectivity options, including Wi-Fi, Ethernet, and Bluetooth.

Safety and Supported Loads

• Protected against overheating, overvoltage, overload, and excessive power consumption.
• Operates seamlessly with devices up to 200 W, such as LED bulbs, incandescent bulbs, halogen lamps, and low-voltage bulb transformers.

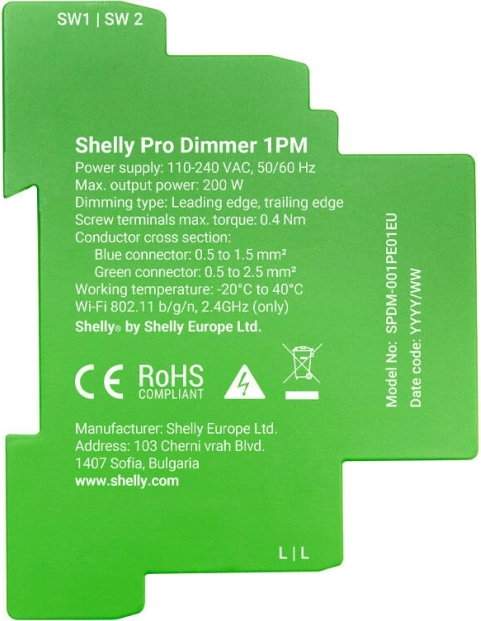

Technical Parameters

• Manufacturer: Shelly
• Model: ProDimmer1
• Power Supply: 110-240 V ~50/60 Hz
• Energy Consumption: < 2 W
• Max Output Power: 200 W
• Wi-Fi Connectivity: 802.11 b/g/n
• Wi-Fi RF Bandwidth: 2401-2483 MHz
• Max Wi-Fi RF Power: < 20 dBm
• Wi-Fi Range: Up to 30 m indoors / up to 50 m outdoors
• Bluetooth Version: 4.2
• Bluetooth RF Band: 2400-2483.5 MHz
• Max Bluetooth RF Power: < 4 dBm
• Bluetooth Range: Up to 10 m indoors / up to 30 m outdoors
• CPU: ESP32-D0WDQ6
• Flash Memory: 8 MB
• Max. Plans: 20
• Operating Temperature: -20°C to 40°C
• Operating Humidity: 30% to 70% relative humidity
• Material: Plastic
• Dimensions: 94 x 19 x 69 mm
• Weight: 75 g
• Installation: DIN Rail
• Compatibility: Amazon Alexa, Google Home, Samsung SmartThings
