The Imou 5-Port 100 Mbps LAN Switch offers a fast and stable network connection with its 5 RJ45 ports. It supports auto speed negotiation ranging from 10/100 Mbps, and the Auto MDI/MDIX feature eliminates the need for crossover cables. Additionally, the 802.3X Flow Control protocol ensures efficient data flow management, making installation straightforward with its Plug & Play functionality.

Fast Connectivity

Equipped with 5 RJ45 ports, this switch is ideal for managing intensive data traffic and provides the performance needed for modern network applications. All ports support Auto-Negotiation, enabling automatic speed adjustment from 10 to 100 Mbps. This ensures high compatibility with various devices and optimizes connection speed based on current needs, ensuring smooth and efficient network operations, whether transferring large files, streaming high definition videos, or using advanced applications.

Efficient Data Flow Management

The device supports advanced 802.3X flow control, ensuring stability and efficiency in network data flows. This flow control mechanism allows for the management and coordination of data transmission between the switch and connected devices, which is crucial under high network load. This effectively prevents data packet loss and reduces the risk of network overload, making it an excellent solution for advanced home applications and demanding corporate users.

Efficient Operation

The switch offers a total throughput of 1 Gbps and a packet forwarding rate of 0.1488 Mpps per port. It features a packet buffer size of 768 Kb, allowing for efficient handling of network traffic. The device also supports Jumbo Frames up to 2K in size and is equipped with a MAC table with 2K entries. It provides surge protection up to 2 KV in common mode and 1 KV in differential mode.

Easy Configuration

With Auto MDI/MDIX support, the Imou switch automatically detects the type of connected cable, eliminating the need for special crossover cables and simplifying network configuration. The Plug & Play feature further enhances operation, allowing instant use of the device without the need for additional drivers.

Well-Designed Construction

The casing is made from high-quality plastic, ensuring lightness (55 g) and durability. The switch's dimensions are just 87.6 x 62 x 21.1 mm, allowing for convenient wall mounting or table placement.

Technical Parameters

• Manufacturer: IMOU
• Model: SF105C
• Network Ports: 5 ports 10/100 Mbps
• PoE Support: No
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90%
• Power Consumption: 0.6W
• LED Indicators: 1x Power, 5x Link/Act
• Switching Capacity: 1 Gbps
• Packet Forwarding Rate: 0.1488 Mpps*5
• Packet Buffer Memory: 768 Kb
• Jumbo Frame: 2K
• MAC Table Size: 2K
• Surge Protection: Common mode: 2 KV; Differential mode: 1 KV

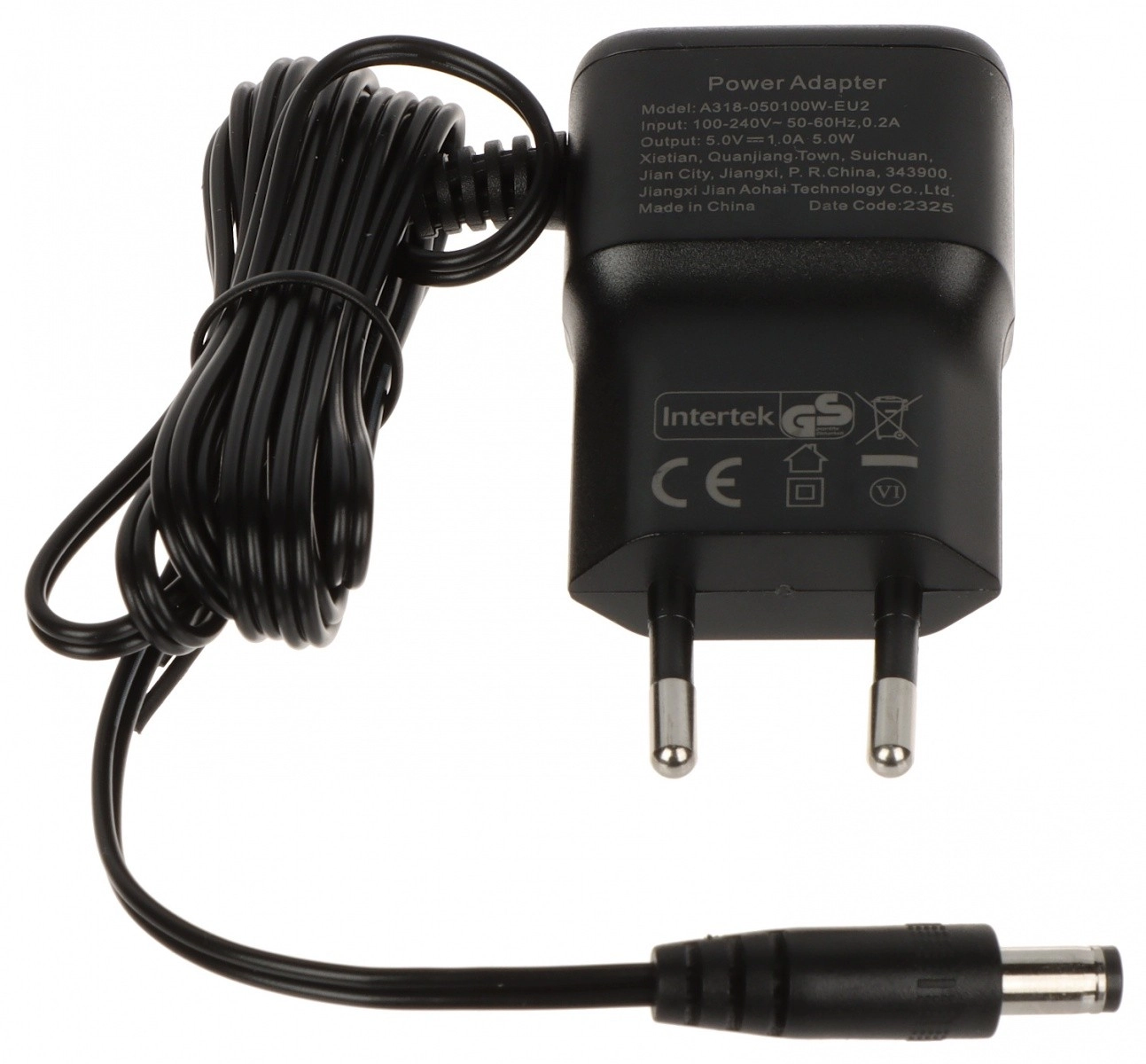

• Power Supply: DC5V1A
• Case Material: Plastic
• Installation Type: Desk Mount/Wall Mount
• Dimensions: 87.6 x 62 x 21.1 mm
• Weight: 55 g
