Reliable Network Connectivity

The 8-Port LAN Switch by Imou offers fast and stable network connections with its 8 RJ45 ports. It supports automatic speed negotiation ranging from 10/100 Mbps, and the Auto MDI/MDIX feature eliminates the need for crossover cables. Additionally, the 802.3X Flow Control protocol ensures efficient data flow management. This switch is easy to install and comes with a plug-and-play feature for user convenience.

Seamless Connection

The Imou switch achieves high throughput and connection flexibility, making it ideal for handling significant data traffic and supporting modern network applications. All ports support Auto-Negotiation, allowing automatic data transfer speed settings between 10 to 100 Mbps. This ensures compatibility with various devices, optimizing connection speed according to current needs and ensuring smooth and effective network operations.

Efficient Data Management

Featuring advanced flow control functionality (802.3X), the switch maintains data stability and efficiency within the network. This mechanism manages and coordinates data transmission between the switch and connected devices, which is crucial under high network loads. It effectively prevents data packet loss and reduces network congestion risks, making it perfect for advanced home applications and demanding corporate users.

Optimized Performance

Designed as an unmanaged switch, it offers user-friendly operation without complex configuration. The switch boasts an overall throughput of 1.6 Gbps and packet forwarding rate of 0.1488 Mpps per port. Its packet buffer memory is 768 Kb, facilitating efficient network traffic processing. Moreover, it supports Jumbo Frames up to 2K and has a MAC address table size of 2K, providing surge protection up to 2 KV in common mode and 1 KV in differential mode.

Easy Setup

With the Auto MDI/MDIX feature, the switch automatically detects cable types, eliminating the need for specialized crossover cables and simplifying network configuration. The plug-and-play functionality ensures immediate operation without additional drivers.

Thoughtful Design

Encased in high-quality plastic, the switch offers durability with lightweight construction at just 86g. Measuring only 133.2 x 62 x 21 mm, it can be easily mounted on a wall or placed on a desk.

Technical Specifications:

• Network Ports: 8 x 10/100 Mbps RJ45
• PoE Support: No
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90%
• Power Consumption: 1.2W
• LED Indicators: 1x Power, 8x Link/Activity
• Switching Capacity: 1.6 Gbps
• Forwarding Rate: 0.1488 Mpps per port
• Packet Buffer Memory: 768 Kb
• Jumbo Frame Support: 2K
• MAC Address Table: 2K
• Surge Protection: 2 KV (common mode), 1 KV (differential mode)

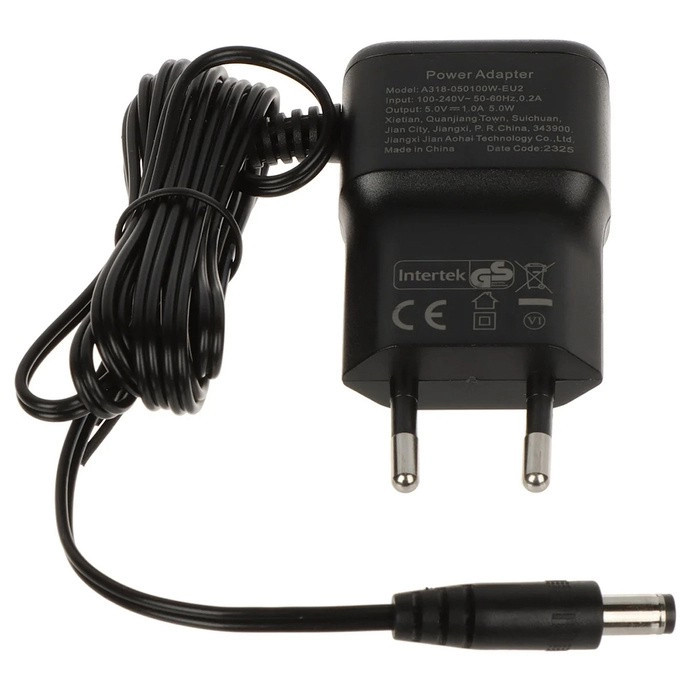

• Power Adapter: DC5V1A
• Casing Material: Plastic
• Installation: Desktop/Wall-mount
• Dimensions: 133.2 x 62 x 21 mm
• Weight: 86 g
