Switch TP-Link TL-SF1024D 24×10/100 Mbps
Switch TP-Link TL-SF1024D 24×10/100 Mbps

Versatility and Compatibility
Support for multiple network standards and protocols, including IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP, ensures compatibility with various devices.

Efficient Connection Management
With the functions of auto-learning and auto-aging of MAC addresses, dynamic management of traffic and efficient network management is ensured.

Robust Design for Long Life

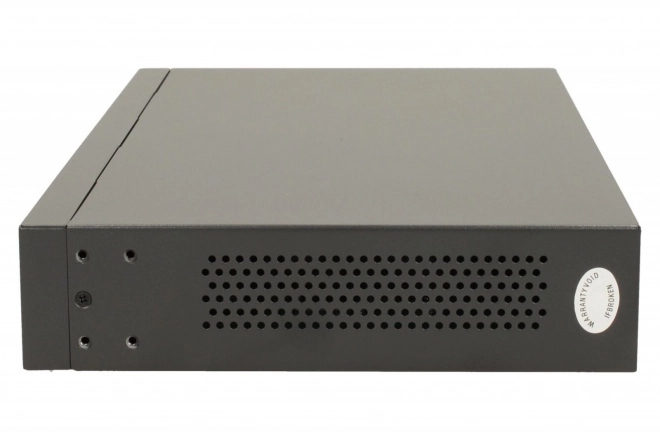

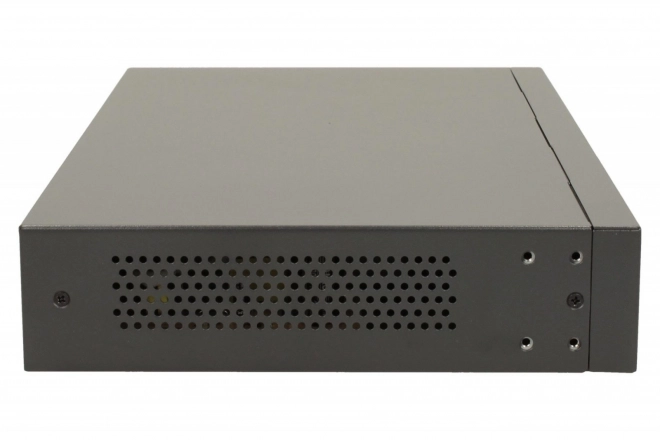

The metal construction of the device ensures high durability and robustness for everyday use in the office.

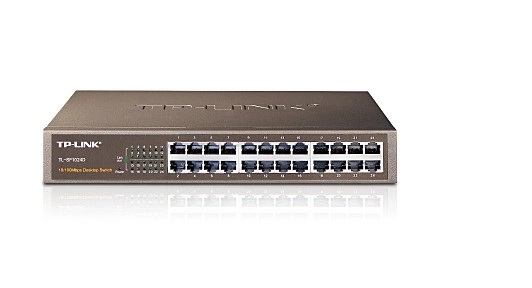

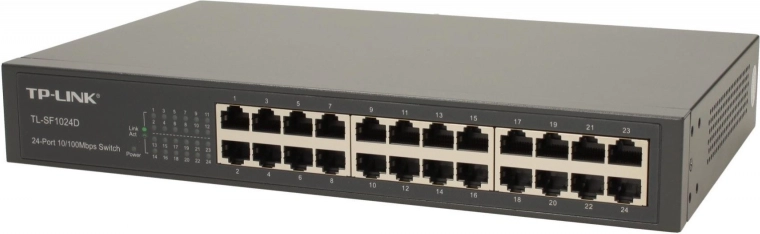

The TP-Link TL-SF1024D switch offers 24 ports, allowing connection of a wide range of devices. This switch supports IEEE standards, such as IEEE802.3, 802.3u, 802.3x, and protocols like CSMA/CD, TCP/IP. The transmission rate for 10BASE-T is 14880 pps/port and for 100BASE-TX is 148800 pps/port.
Thanks to the auto-learning and aging function of MAC addresses, the switch is able to optimally manage traffic and ensure efficient connectivity. The network throughput reaches 4.8 Gbps, which further contributes to the device's high efficiency.
The switch uses the Store-and-Forward method for data transmission and supports various cables, including UTP and STP categories, for different types of connections, with a maximum length of 100 m.
Specifications
- Number of Ports
- 24 10/100Mbps Auto-Negotiation RJ45 (Auto MDI/MDIX)
- Transmission Rate
- 10BASE-T: 14880 pps/port, 100BASE-TX: 148800 pps/port
- Network Throughput
- 4.8Gbps
- Transmission Method
- Store-and-Forward
- Standards and Protocols
- IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
- MAC Address Table
- 8k
- LED Indicators
- Power, Link/Act, 100Mbps
- Certifications
- FCC, CE
- Operating Temperature
- 0°C ~ 40°C
- Storage Temperature
- -40°C ~ 70°C
- Operating Humidity
- 10% ~ 90% non-condensing
- Storage Humidity
- 5% ~ 90% non-condensing

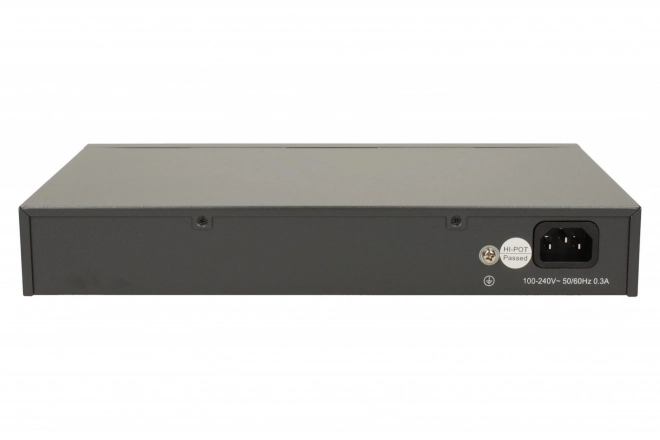

- Power Supply
- 100-240VAC, 50/60Hz
- Dimensions
- 29.4 x 18.0 x 4.4 cm
