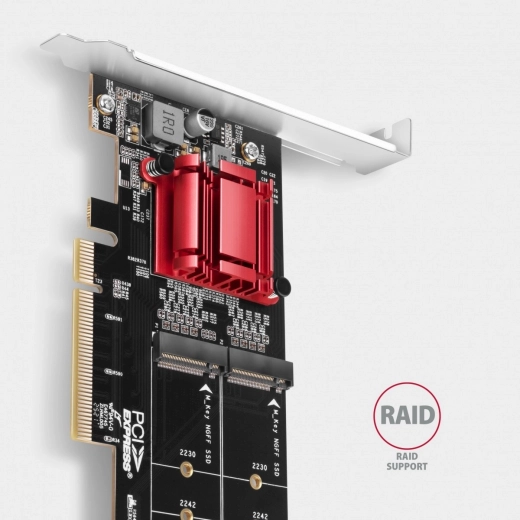

The AXAGON PCI-Express M.2 Expansion Card is an excellent solution for connecting dual M.2 NVMe SSDs to your desktop computer. It supports RAID configurations and enhances the performance of systems lacking M.2 slots.

• Universal Compatibility: Fully functional with all motherboards, even those without PCI-Express bifurcation support, thanks to the high-quality Asmedia chipset.
• High-Speed PCIe 3.0 Interface: Achieve impressive data transfer rates up to 4000 MB/s (4 GB/s) with support for PCIe x8 and x16 slots.
• Wide SSD Support: Compatible with single and double-sided NVMe M.2 SSDs in sizes up to 22x110 mm. Easily adapts to smaller spaces by detaching the rear section for shorter drives.
• Low-profile Installation: Includes a low-profile bracket for seamless integration into compact cases.
• SW RAID Support: Software-based RAID can be easily configured through various operating systems.
• Efficient Cooling: Features a robust passive heatsink for the chipset. Supports additional heatsinks up to 22 mm wide on the drives for optimal performance. Compatible with AXAGON radiators CLR-M2L3, CLR-M2L6, and CLR-M2L10.
• Easy Installation: Automatic setup with no drivers required, ensuring a hassle-free installation process.

Technical Parameters:

• Input: PCI-Express 3.0 compatible with PCI-Express 4.0 / 3.0 / 2.1 / 2.0 / 1.1 / 1.0a, 8-Lane, compatible with PCIe x8 / x16 slots.
• Outputs: 2x NGFF 75-pin M-key slots for NVMe (PCI-Express) M.2 SSD.
• Operating temperature controlled by efficient passive cooling.
• Signal LEDs for drive connection or data transfer indications.
• Physical dimensions: 180 x 64 x 20 mm, Weight: 75 g.
• Supported Operating Systems: MS Windows 7 and newer, Windows Server 2008 and newer, and Linux kernel 2.6.31 onwards.

Package Contents:

• Standard PCI-Express adapter with covers.
• Low-profile bracket.
• Mounting materials.
• User manual in multiple languages.
• Packaged in a cardboard box.
