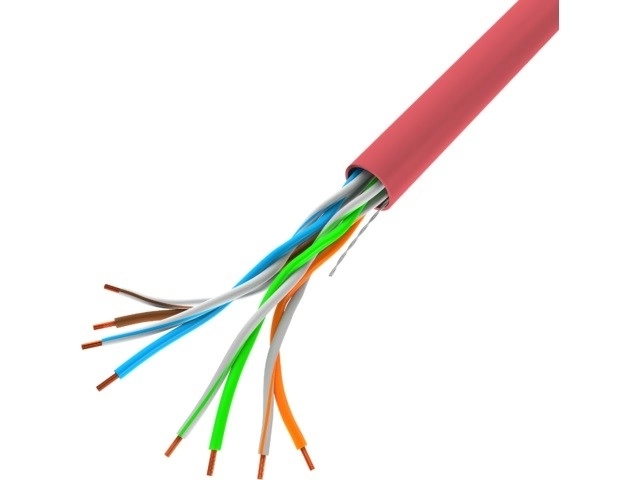

The Red Lan Cable UTP provides reliable data transmission at 100Mb/s, perfect for a variety of networking applications. This 305-meter cable is designed for short-length installations up to 10 meters and non-certified installations according to EN 50173 standards.

• Transmission speed: 100Mb/s
• Shielding: U/UTP (unshielded)
• Length: 305m
• Constructed with copper-clad aluminum (CCA)
• Specification: AWG 24 (4*2*0.5mm)
• Single wire construction
• Color: red RAL3017
• Meter marking every meter
• External insulation: PVC 5.0mm
• Wire insulation: HDPE 0.93mm
• Frequency operation: up to 100Mhz
• Packaging: box

Electrical Parameters (at 20 degrees):

• Max wire resistance: 60 - 90 Ohms / 305m
• Min insulation resistance: 5000 MOhm km
• Capacitance pair-to-ground: < 330 pF / 100m
• Characteristic impedance: < 100 Ohm (+/- 15)
• Storage temperature: 0 to 60 degrees
• Operating temperature: -20 to 70 degrees
• Operating distance: 100-120m
