SONOFF M5-2C-80 is a dual-channel mechanical WiFi smart wall switch that combines innovative technology with ease of use. With the eWeLink app, you have full control over your home devices even when you're away. The switch control is extremely easy and convenient, even for older individuals. Whether you use the local button, the app, or voice commands, SONOFF M5 provides convenience every step of the way.

Convenient control in multiple ways

The switch can be controlled using physical buttons that are quick and sensitive. The buttons can also be operated with gloves, making them easier to use. A single press is all it takes to turn on the lights. Additionally, thanks to collaboration with voice assistants like Alexa, Google Home, Alice, and Siri Shortcut, you can control the light via voice commands.

Safety at the highest level

The SONOFF M5-2C-80 lighting is designed with user safety in mind. It has a CE certificate and offers resistance to high temperatures. Thanks to its thoughtful design, it is possible to safely separate high and low voltages during disassembly.

Functionality tailored to your needs

The switch is equipped with an adjustable LED indicator whose brightness can be set according to your preferences. Smart scenes can be set up to connect the switch with other devices, such as the DW2-WiFi door sensor, to automatically turn on the light when the door is opened.

Easy integration with the smart home system

It collaborates with the NSPanel system, allowing you to control lights and appliances using a touch screen. The ability to control the light from multiple stations eliminates the need for complex wiring.

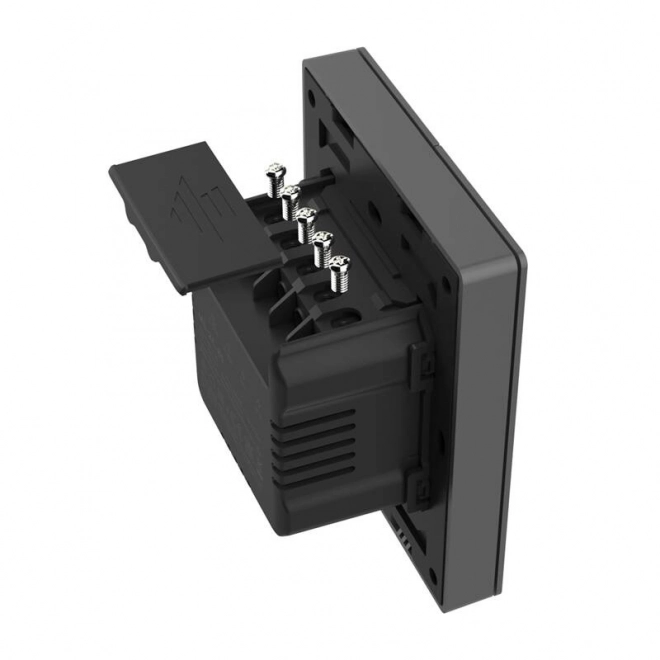

Easy installation and modern design

Installation is easy, and thanks to its elegant graphite design, the switch perfectly integrates into modern interiors. Regardless of your home style, this smart switch is a perfect addition to your smart home system.

The package includes:

• Wall switch
• 2x mounting screws
• User manual

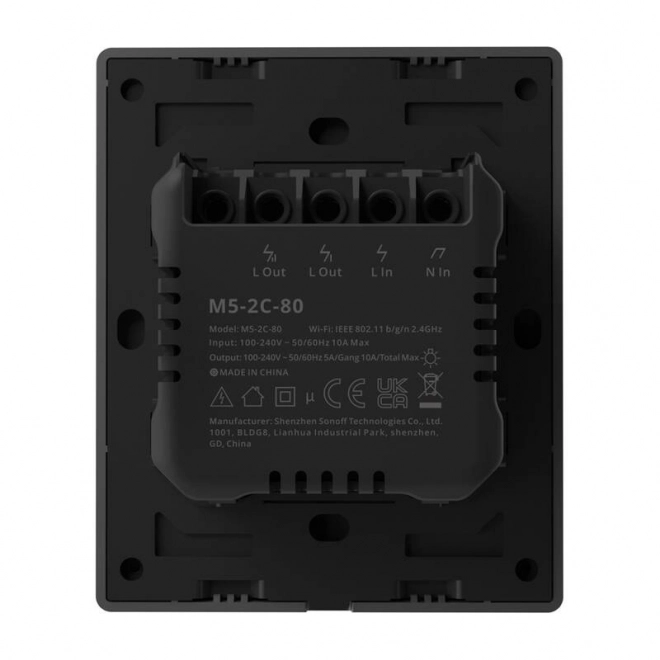

Technical specifications:

• Manufacturer: Sonoff
• Model: M5-2C-80
• Material: Fire-resistant PC plastic V0
• Dimensions: 86 x 71 x 12.8 x 29.9 mm
• Channels: Dual-channel
• Connection: WiFi 2.4 GHz (IEEE 802.11 b/g/n)
• Rated voltage: 100-240 V AC, 50/60 Hz
• Output: 100-240 V AC, 50/60 Hz
• Output current: 10 A (5 A per channel)
• Maximum power: 2200 W (1100 W per channel)
• Operating temperature: -10 °C to 40 °C
• Microcontroller (MCU): ESP32
• Certifications: CE
• Special application: eWeLink
• Voice control: Yes (Alexa, Google Home, Alice, Siri)
• Compatibility: NSPanel, DW2-WiFi door sensor
• Additional features: Adjustable LED indicator, schedules, and automatic scenes, two-way and omnidirectional light control
• Installation: In a standard wall frame (compatible with most frames)
