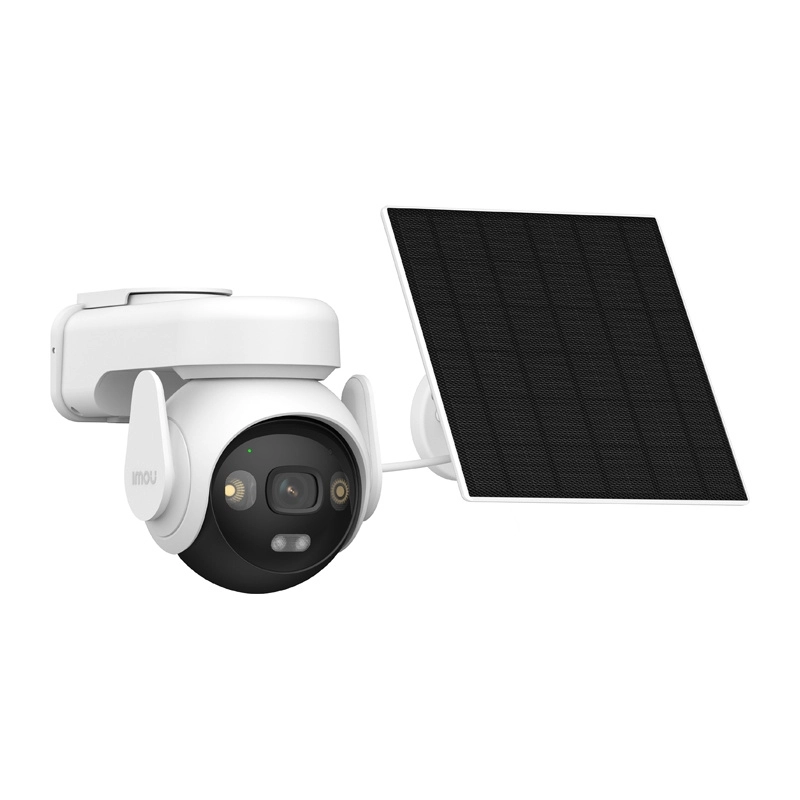

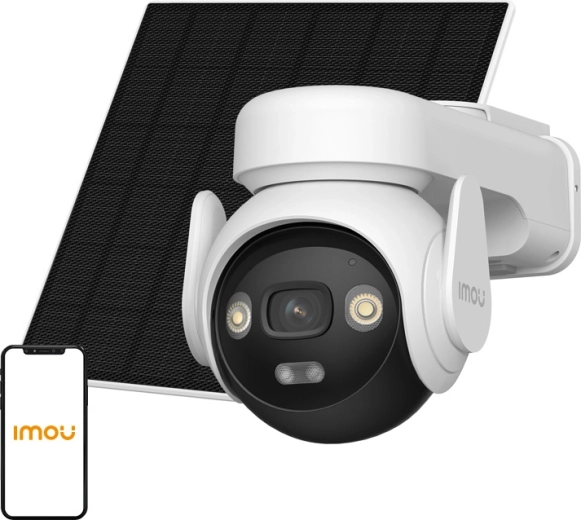

The Imou AOV PT KIT 4G outdoor IP camera offers 5MP video, 340° pan and 90° tilt, continuous AOV monitoring, and independent power thanks to a 10,000 mAh battery and a 5W solar panel. Connectivity via 2.4 GHz Wi‑Fi or 4G LTE makes it an ideal solution for a house, cabin, construction site, and locations without fixed internet, with recording to microSD up to 512 GB without the need for paid services.

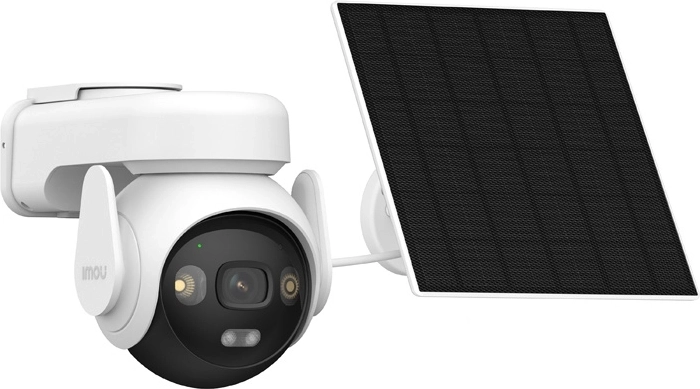

Cable-free power: 10,000 mAh battery + 5W solar panel
The camera is designed for off-grid operation – the 10,000 mAh battery together with the 5 W solar panel reduces the need for recharging and allows installation even where there is no power outlet. A notification system informs you when the battery level is low.
Always-on AOV monitoring and wide coverage thanks to 340°/90° rotation
Always‑on Video (AOV) technology ensures continuous monitoring with optimized consumption: the camera creates time-lapse footage and switches to full video when an event occurs. The pan/tilt mechanism of 340° horizontally and 90° vertically helps eliminate blind spots.
Wi‑Fi and 4G LTE connection plus smart person/vehicle detection
Two connection modes – 2.4 GHz Wi‑Fi or 4G LTE – let you use the camera at home as well as in remote locations. IMOU SENSE identifies people and vehicles and, when a threat is detected, activates a siren and a light alarm.
Imou AOV PT KIT 4G is an outdoor security camera designed for maximum area coverage and off-grid operation. Thanks to the pan-tilt design and high resolution, it captures important details, while Always‑on Video (AOV) technology keeps watch over the area with optimized power consumption. The camera continuously creates time-lapse footage from regular snapshots and automatically switches to full video when an event occurs.
Power is provided by an integrated 10,000 mAh battery and a 5 W solar panel, so you can do without wiring. For connectivity, you can choose 2.4 GHz Wi‑Fi or 4G LTE (also suitable for remote locations). Intelligent IMOU SENSE algorithms recognize people and vehicles and, in case of risk, trigger a siren and a light alarm.
Main benefits:
- 5 MP (2880 × 1620) and H.265 compression for efficient recording
- PTZ movement 340°/90° to minimize blind spots
- Night vision up to 25 m + Smart Full‑Color Night Vision when motion is detected
- Two-way audio (microphone and speaker) for remote communication
- Local storage on microSD up to 512 GB (memory card not included)
- Privacy mode to cover the lens
Package contents:
- Camera
- Solar panel
- Mounting bracket (for camera)
- Mounting bracket (for panel)
- Installation template
- Power cable (1 m)
- Set of screws and wall plugs (for camera)
- Set of screws and wall plugs (for panel)
- User manual
Specifications
- Manufacturer
- IMOU
- Model
- IPC-B7ED-5M0TEA-EU
- Material
- Plastic
- Power supply
- DC 5 V 2 A
- Operating temperature
- -20 °C to +50 °C
- Charging temperature
- -10 °C to +45 °C
- Dimensions
- 177 × 110 × 142 mm
- Certification
- CE, MSDS
- Sensor
- 1/3” Progressive CMOS
- Resolution
- 5 MP (2880 × 1620)
- Night vision range
- 25 m
- Lens
- 3.6 mm
- Field of view
- 76° (H), 41° (V), 91° (D)
- Pan/tilt range
- 340° / 90°
- Battery
- 10,000 mAh
- Video compression
- H.265
- Frame rate
- Up to 15 fps
- Digital zoom
- 8×
- Audio
- Two-way
- Person detection
- Yes
- Vehicle detection
- Yes
- Low-battery notification
- Yes
- Local storage
- microSD up to 512 GB
- Wi‑Fi
- IEEE802.11 b/g/n, 2.4 GHz
- 4G LTE
- B1/3/5/7/8/20/28/38/40/41
- App
- Imou (iOS, Android)
- Microphone and speaker
- Integrated
- Reset button
- Yes
- Memory card slot
- Yes
